23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

  • 23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V
23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR184E
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
High Light:

three phase ac generator

,

3 phase alternator

23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V

Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

23KW

Certificate

CE,ISO9001,SASO



Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

110V~690V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H

Description:

ac synchronous three phase industrial alternators

Electric performance

Rated output power: 23KW

Rated voltage:400/230v, 440/254v, 220/127v, etc.

Phase/connecting method: 3 phase 12wire/Y type connection

Rated frequency: 50/60hz

Rated speed: 1500/1800rpm

Excited type: Brushless, self excited

Insulation: Class H

Protection: IP23

Voltage regulation: AVR automatic control

Steady voltage regulation≤±1.0%

Transient voltage regulations≤+20%, -15%

Adjustable voltage range 95-105%Un

Sine waveform distortion rate at no-load, ≤5%,(line voltage)



The advantage of our material:

1. Winding enamelled wire is 100% copper

2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.

3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.

5.  All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of  our factory should be tested by specialized Test Room.



Why to choose Werna Alternator/generator?

1. 100% copper winding wire

2. In stock and fast delivery

3. Two year warranty

4. Best quality and competitive price

5. Two-time vacuum impregnation dipping

6. powerful quality control team

7. Good after-sale service

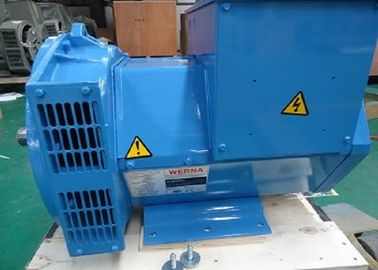

23kw / 28.8kva 1800rpm Three Phase AC Synchronous Generator Blue 110V ~ 690V 0
