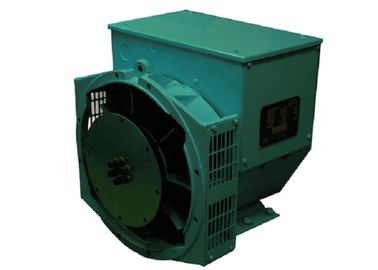

10kw / 12.5kva 50 HZ Brushless AC Synchronous Generator With 12 / 6 Wire ISO9001

10kw / 12.5kva 50 HZ Brushless AC Synchronous Generator With 12 / 6 Wire ISO9001

  • 10kw / 12.5kva 50 HZ Brushless AC Synchronous Generator With 12 / 6 Wire ISO9001
10kw / 12.5kva 50 HZ Brushless AC Synchronous Generator With 12 / 6 Wire ISO9001
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR162D
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
High Light:

self-excited ac generator

,

brushless ac alternator

10kw / 12.5kva 50 HZ Brushless AC Synchronous Generator With 12 / 6 Wire ISO9001

Quick Detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          8.4kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR162D

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Three Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Technical data

Werna Type 3Phase 50Hz3000rpm Shaft Length Copper total weight Core length
         380V~415V
KVA KW mm kgs mm
WR162D 12.5 10 373.16 12.22 66
WR162E 15 12 373.16 13.02 88
WR162F 17.5 14 425.16 13.44 102
WR162G 25 20 425.16 15.2 140
WR182H 30 24 490.16 15.88 160
WR182J 35 28 490.16 17.19 190
WR182K 37.5 30 530.16 18.48 225

Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

Quality Control Surveillance
