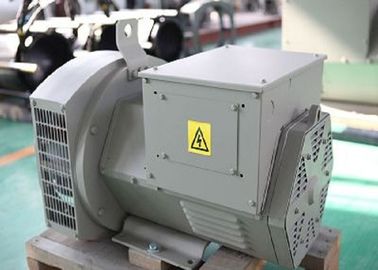

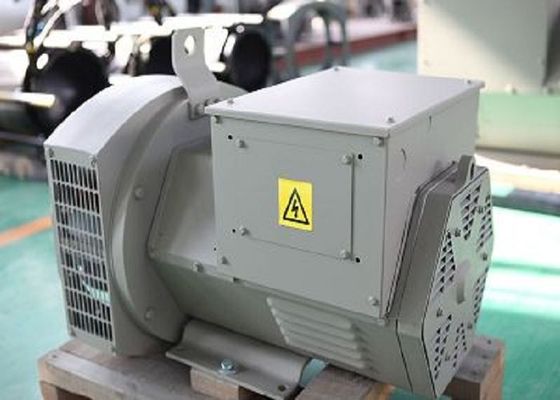

28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase

28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase

28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase

Product Details:

Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR182J

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Detailed Product Description

28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase



Quick Detail:

Name

  Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          28kw

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR182J

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Three Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

190-454V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.


Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service





Technical data

Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
380V~415V
KVA KW mm kgs mm
WR164A 8.1 6.5 373.16 9.98 65
WR164B 11 8.8 373.16 11.18 80
WR164C 13.5 10.8 400.16 11.6 100
WR164D 1 12.8 400.16 11.88 115
WR184E 22.6 18 440.16 14.72 150
WR184F 27.5 22 530.16 16.2 190
WR184G 31.3 25 530.16 17.8 230
WR184H 37.5 30 673.3 19.21 255
WR184J 40 32 673.3 20.48 285



Werna Type 3Phase 60Hz 1800rpm Shaft length Copper total weight Core length
208V~480V
KVA KW mm kgs mm
WR164A 10.2 8.2 373.16 9.98 65
WR164B 13.8 11 373.16 11.18 80
WR164C 16.9 13.5 400.16 11.6 100
WR164D 20.2 16 400.16 11.88 115
WR184E 28.8 23 440.16 14.72 150
WR184F 34.4 27.5 530.16 16.2 190
WR184G 37.5 30 530.16 17.8 230
WR184H 46.9 37.5 673.3 19.21 255
WR184J 50 40 673.3 20.48 285




Production line
28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase28kw / 35KVA Brushless AC Genernator 3000rpm / 220v Alternator Three Phase
