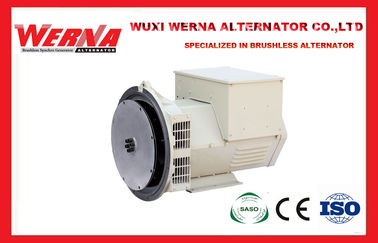

25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz

25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz

  • 25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz
25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz
Product Details:
Place of Origin: WUXI CITY ,CHINA
Brand Name: WERNA
Certification: ISO CE SASO
Model Number: WR184G
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Packaging Details: strong plywood cases
Delivery Time: 15-20days after receive the first payment
Supply Ability: 1200pcs /month
Contact Now
Detailed Product Description
Wire: 100%copper AVR: Sx460
Insulation Class: Class H Protection Class: IP22
High Light:

3 phase portable generator

,

three phase alternator

25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz









Name

BRUSHLESS ALTERNATOR

Brand Name



   WERNA



Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

   25KW /31kva

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208V~480V

Frequency

50Hz

Speed

1500 RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.

 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

 Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

Why to choose Werna Alternator/generator?

1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

Our Alternators
25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz 0
Our Workshop
25KW 31KVA Single Bearing Three Phase AC Brushless Generator AVR 50Hz 1
