    Product Details:

    Place of Origin: WUXI ,JIANGSU,CHINA
    Brand Name: WERNA
    Certification: ISO CE SASO
    Model Number: WR544E14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: USD 4000 fob shanghai
    Packaging Details: plywood
    Delivery Time: 15 days
    Payment Terms: T/T, L/C
    Supply Ability: 1500 pcs / month
    Contact Now
    Detailed Product Description
    Terminal: 12 / 6 Wire Rated Voltage: 190-454v
    Frequency: 50HZ Mounting Dimensions: Stamford Type
    Winding Pitch: 2 / 3 Pitch Excitation: Brushless, Self-excited, Synchro

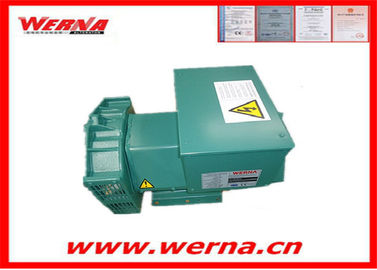

    Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch







    Quick Detail:

    Name

    Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature



    AC brushless synchronous excitation alternator


    Power

          488kw/610KVA

    Certificate

    CE,ISO9001,SASO


    Specifications:

    Model

    WR544E14

    manufacturer

    Wuxi City ,Jiangsu Prov ,China

    Output Type

    AC 3 Phase

    Terminal

    12 / 6 Wire

    Rated Voltage

    190-454V

    Frequency

    50HZ

    Speed

    1500RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H class


    Description:
    with Long experience in manufacturing alternator / ac generator,ranging6.5~1760kw
    for prime or standby use, more than 80 different models, with 50Hz or 60Hz frequency, Single bearing or
    Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
    1) Protection class IP23, insulation class H.
    2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable
    for indoors marine applications.
    3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
    4)  Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
    5) The power factor ranges from 0.8 to 1.
    6) Telephone influence factor is less than 50, according to NTMA.

    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001,SASO
    8. Good after-sale service

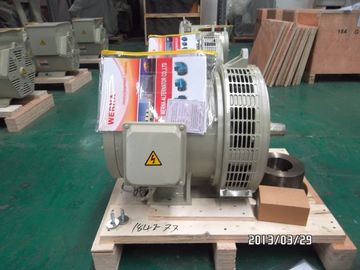

    Production line




    Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch

    Home Three-Phase Double Bearing Generator 100% Copper 2/3 Pitch



    Our service

    Werna factory provides high quality generator sets and alternator,each one is strictly test before Export . After service and spart parts are availabale from our factory.





    Company infomation

    Werna company is the professional alternators manufacturer, together with the most advanced design, production in the world. The Werna generators are self-excited, self-regulating, brushless synchronous machines. The insulation system of the windings confirms to the requirements of temperature class H, ensure that the Werna generators set a international standard for excellent performances and reliability. Werna range covers 5kVA upto 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.

     Werna series conform to the requirements of IEC34, VDE0530, BS5000 part 3. Our quality standard:
     To consistently deliver products and services that meet or exceed our customer's expectations.
     To continually improve everything we do, through the active involvement of associate.

     We take our great efforts to create brushless, synchronous alternators of performance price rate excellent than world's product. Our success owes to advance technology, High quality, reasonable prices and Satisfied service.

     We hope that We can establish the friendly business relationship with your company, become cooperation partner, and pleasure to work together with you. Developing together with your company. We will offer all information and samples to you for testing in accordance with your Detailed requirements to gain your approval. Warmly Welcome to our company to interview At your convenience. We believe that our alternators do not make disappointed and you will get The satisfactory result. If you have any question, Kindly please have no any hesitation to contact Us immediately.
