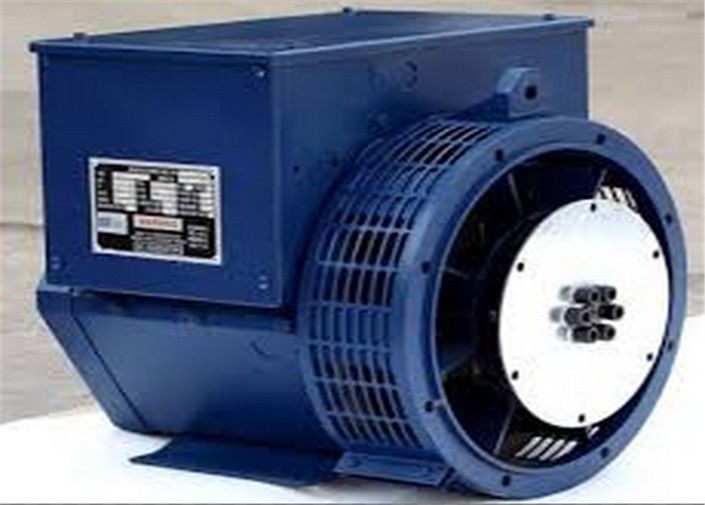

AC Single Phase Diesel Generator / Brushless Magnetic Alternator 25kw 60hz

AC Single Phase Diesel Generator / Brushless Magnetic Alternator 25kw 60hz

Product Details:

Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR184G

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Warranty: 2 Years Life Time: 20 Years
Insulation Class: H Protection: IP 22/ 23
Packing: Plywood Color: Optional

AC Single Phase Diesel Generator / Brushless Magnetic Alternator 25kw 60hz



Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          25kw

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR184G

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Werna Type 1Phase 60Hz1800rpm Shaft Length Copper total weight Core length
      220V~240V / 1.0
KVA KW mm kgs mm
WR164A 8.2 8.2 373.16 9.08 65
WR164B 11 11 373.16 9.59 80
WR164C 13.5 13.5 400.16 10.28 100
WR164D 16.5 16.5 400.16 10.66 115
WR184E 22.3 22.3 440.16 12.48 150
WR184F 26.1 26.1 530.16 13.9 190
WR184G 30.8 30.8 530.16 15.4 230





Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8.Good after-sale service
AC Single Phase Diesel Generator / Brushless Magnetic Alternator 25kw 60hz
