22kva Brushless Alternator For Specially Refrigerated Car

22kva Brushless Alternator For Specially Refrigerated Car

22kva Brushless Alternator For Specially Refrigerated Car
22kva Brushless Alternator For Specially Refrigerated Car
22kva Brushless Alternator For Specially Refrigerated Car
Product Details:
Place of Origin: Wuxi,China
Brand Name: WERNA
Certification: CE,ISO9001,SASO
Model Number: WR184EC
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 1000 units/month
Contact Now
Detailed Product Description
Speed: 1500Rpm Or 1800Rpm Insulation Class: H
Warranty: 2 Years Output Type: AC Three Phase & 3 Phase Diesel Generators
Color: Optional Wire: 100% Copper Wire
High Light:

22kva brushless alternator

,

specially refrigerated car brushless alternator

,

1500Rpm brushless alternator



22kva Brushless  Alternator  For  Specially Refrigerated Car




Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature



AC brushless synchronous excitation alternator



Power

          22 kva

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR184EC

manufacturer

Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

460 V

Frequency

60 HZ

Speed

1800 RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H



Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
22kva Brushless Alternator For Specially Refrigerated Car 0

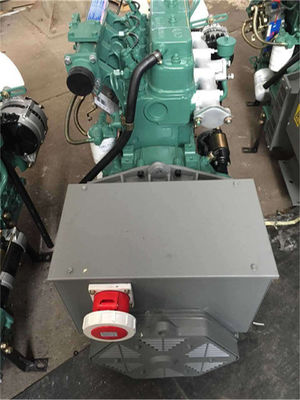

22kva Brushless Alternator For Specially Refrigerated Car 1



FAQ

1. Q: What is the lead time?



       A: 15 days after receiving your L/C or TT deposit.

 2. Q: Is it all right to make customer's own brand name?

       A: We can be your OEM manufacture with your authorization of brand.

 3. Q: Where is your Loading Port?

       A: Shanghai, China Port.

 4. Q: What are your payment terms?

       A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

  5. Q: What is your company's available production capacity?

       A: 10000  pieces against your orders.
