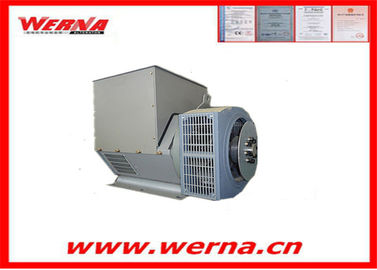

3 Phase Stamford AC Generators , sx460 40kw Double Bearing Generator

3 Phase Stamford AC Generators , sx460 40kw Double Bearing Generator

3 Phase Stamford AC Generators , sx460 40kw Double Bearing Generator

Product Details:

Place of Origin: Wuxi,China
Brand Name: WERNA
Certification: CE,ISO9001,SASO
Model Number: WR184J16

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: USD 663 / 1 PIECE FOB SHANGHAI
Packaging Details: Plywood
Delivery Time: ± 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Contact Now
Detailed Product Description
Warranty: 2 Years Wire: 100% Copper Wire
Life Time: 20 Years Color: Optional
THF: < 2% Protection: IP22 /23

3 Phase Stamford AC Generators , sx460 40kw Double Bearing Generator


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

40 KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

110V~454V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H

 3 Phase Stamford AC Generators , sx460 40kw Double Bearing Generator
We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.
with long experience in manufacturing alternator / ac generator.

Description:
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
8) Overload standard according to NEMA.
9) All generator statore are wound to 2/3 pitch.

 Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
3 Phase Stamford AC Generators , sx460 40kw Double Bearing Generator
