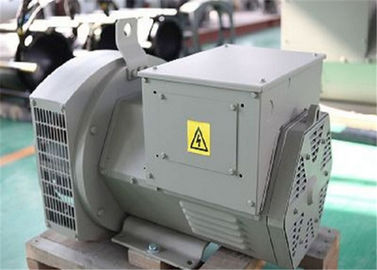

12kw 15kva Brushless AC Generator With 2 / 3 Pitch Perkins Generator Set Use

12kw 15kva Brushless AC Generator With 2 / 3 Pitch Perkins Generator Set Use

Product Details:

Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR162E

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
THF: <2% Color: Optional
MOQ: 1 OEM Service: Acceptable
Frequency: 50HZ Manufacturer: Wuxi City ,Jiangsu Prov ,China Making Alternators

Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set




Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

          12kw

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR162E

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Three Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

190-454V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H




Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.



Generator with permanent magnet 12kw/15kva



Technical data

Werna Type 3Phase 50Hz3000rpm Shaft Length Copper total weight Core length
         380V~415V
KVA KW mm kgs mm
WR162D 12.5 10 373.16 12.22 66
WR162E 15 12 373.16 13.02 88
WR162F 17.5 14 425.16 13.44 102
WR162G 25 20 425.16 15.2 140
WR182H 30 24 490.16 15.88 160
WR182J 35 28 490.16 17.19 190
WR182K 37.5 30 530.16 18.48 225



FAQ

1. Q: What is the lead time?

      A: 25-30 days after receiving your L/C or TT deposit.

2. Q: Is it all right to make customer's own brand name?

       A: We can be your OEM manufacture with your authorization of brand.

3. Q: Where is your Loading Port?

       A:Shanghai, China Port.

4. Q: What are your payment terms?

       A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

5. Q: What is your company's available production capacity?

       A: 3000-5000 pieces against your orders.
