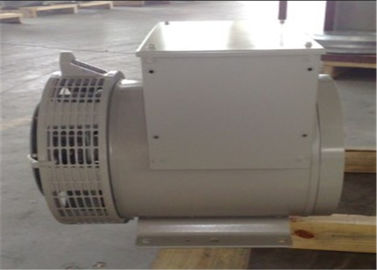

40kw 50kva 1800rpm Self Excited Three Phase AC Generator For Generator Set

40kw 50kva 1800rpm Self Excited Three Phase AC Generator For Generator Set

40kw 50kva 1800rpm Self Excited Three Phase AC Generator For Generator Set

Product Details:

Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR184J

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Manufacturer: Wuxi City ,Jiangsu Prov ,China Making Alternators Output Type: AC Three Phase & 3 Phase Diesel Generators
Mounting Dimensions: Stamford Type Control: Good AVR
Packaging Details: Packed In Standard Seaworthy Packing (wooden Cases / Plywood Etc) Material: Cold Roll Stator & 100 % Copper

40kw / 50kva 1800rpm Self-excited Three Phase AC Generator IP23 For Generator Set

Quick detail:



Brand Name



According to the international standard color card


AC brushless synchronous excitation alternator







Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator


12 / 6 Wire

Rated Voltage






Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch


Brushless, self-excited, synchrous

Insulation Class


Technical Datas

Werna Type 3Phase 60Hz 1800rpm Shaft length Copper total weight Core length
  KVA KW mm kgs mm
WR164A 10.2 8.2 373.16 9.98 65
WR164B 13.8 11 373.16 11.18 80
WR164C 16.9 13.5 400.16 11.6 100
WR164D 20.2 16 400.16 11.88 115
WR184E 28.8 23 440.16 14.72 150
WR184F 34.4 27.5 530.16 16.2 190
WR184G 37.5 30 530.16 17.8 230
WR184H 46.9 37.5 673.3 19.21 255
WR184J 50 40 673.3 20.48 285

Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
 IP23 is for optional but the rated power will decrease 5%.
 Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Winding
All generator stators are wound to 2/3 pitch.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
40kw 50kva 1800rpm Self Excited Three Phase AC Generator For Generator Set
