Place of Origin: | Wuxi,China |
Brand Name: | Werna |
Certification: | CE,ISO9001,SASO |
Model Number: | WR274F |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | negotiation |
Packaging Details: | Plywood |
Delivery Time: | Within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000units/month |
High Light: | ac synchronous generator,brushless synchronous alternator |
---|

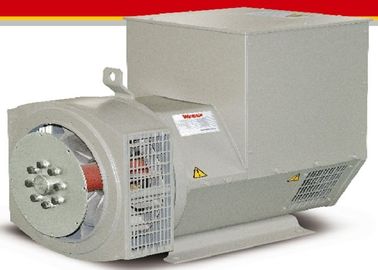

Self-excited Single Phase Diesel AC Generator 125kw / 125kva For Home Use
Quick Detail:
Name |
ALTERNATOR |
Brand Name |
WERNA |
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator
|
Power |
125kw/125kva |
Certificate |
CE,ISO9001,SASO |
Specifications
Model |
WR274E16 |
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
Output Type |
AC Single Phase diesel generator |
Terminal |
12 / 6 Wire |
Rated Voltage |
110-690V |
Frequency |
50HZ |
Speed |
1500RPM |
Mounting dimensions |
Copy Stamford Type |
Winding Pitch |
2 / 3 pitch |
Excitation |
Brushless, self-excited, synchronous |
Insulation Class |
H |
Description:
1) Any permanent magnetic generators, providing invariable excitation on all occasions.
2) Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3) Balanced rotor with single or two sealed ball bearings
4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
5) Wide range of Flange adaptor and single bearing coupling disc Meet leading standards
ELECTRIC FEATURES
INSULATION
Insulation Class H
All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.
Winding and electric features:
2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.
Phone interference
THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50
Radio interference
Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.
Quality Assurance
Factory Inspection, the test items before delivery are mainly as follows:
1. Each genset shall be put into commission more than 4 hours totally.
They are tested on idle load, fully load and 10% overload
2. The noise level is tested
3. All of the meters on the control panel shall be tested
4. The appearance of the genset and all of the label and nameplate shall be checked
FAQ:
1. Q:When was your company established?
A:in 2005
2. What is your main products?
A: Alternator, diesel generator, Motor.
3. What certificate you get?
A: We pass ISO9001-2008 and approved by CE,SASO.
4. Q: What is your MOQ of this item?
A: 1-10PCS
5. Q: What is the deliverytime?
A: 15-20 days after receiving your TT deposit.
6. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
7. Q: Where is your Loading Port?
A: Shanghai, China Port.
8. Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading..
9. Q: What is your company's available production capacity?
A: 3000-5000 pieces against your orders.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
