Place of Origin: | Wuxi,China |
Brand Name: | Werna |
Certification: | CE,ISO9001,SASO |
Model Number: | WR162D |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | Plywood |
Delivery Time: | Within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000units/month |
Highlight: | brushless synchronous generator,brushless exciter generator |
---|

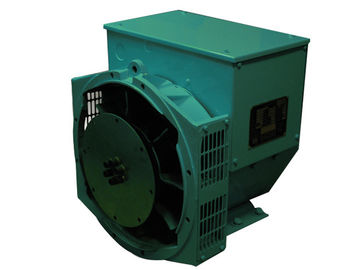

Brushless Exciter Synchronous 2 Pole Generator
Quick detail:
Name |
ALTERNATOR |
Brand Name |
WERNA |
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
Power |
20KW |
Certificate |
CE,ISO9001,SASO |
Description:
20kw 3000rpm 2 pole high speed alternator
All generator stators are wound to 2/3 pitch.
brushless excitation synchronous generator,2 pole,12kw/15kva
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
2 pole high-speed alternator
Frequency And Voltage
50Hz or 60Hz as per customers' request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available.
Insulation and Protection
P23 is for optional but the rated power will decrease 5%.
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
Output type |
AC Three Phase Brushless generator |
Terminal |
12 / 6 Wire |
Rated Voltage |
110V~690V |
Frequency |
50Hz |
Speed |
3000RPM |
Mounting Dimension |
Stamford Type |
Winding pitch |
2/3 pitch |
Excitation |
Brushless, self-excited, synchro |
Insulation Class |
H |
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
6. CE,ISO9001
7. Good after-sale service
