Silent 20kw 25kva 1800rpm Diesel AC Generator

Silent 20kw 25kva 1800rpm Diesel AC Generator

Silent 20kw 25kva 1800rpm Diesel AC Generator
Silent 20kw 25kva 1800rpm Diesel AC Generator
Silent 20kw 25kva 1800rpm Diesel AC Generator
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR224D
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Excitation: Brushless, Self-excited, Synchro Insulation Class: H
Packaging Details: Packed In Standard Seaworthy Packing (wooden Cases / Plywood Etc) Controller: Harsen/Deepsea/Smartgen
Optional: ATS/Fuel Tank Capacity/color/logo Rated Voltage: 190-454v
High Light:

1800rpm Diesel AC Generator

,

20kw Diesel AC Generator

,

25kva Diesel AC Generator









Silent 50HZ 60HZ 20kw 25kva ac alternator diesel generator with 1500/1800rpm




SPECIFICATIONS OF ENGINE
2.1 Engine Brand Werna
2.2 Engine Model
2.3 Governor/Class Mechanical or Electronic
2.4 Cylinder NO. 4
2.5 Engine build Line
2.6 Emission compliant Stage II
2.7 start-up method 24V, electric
2.8 Air intake type Natural
2.9 Cooling mode Water Cooling
2.10 Bore and stroke 102×118 mm
2.11 Compression ratio 17:01
2.12 Displacement 3.86
2.15 Lubrication oil capacity 12.5L
2.16 Oil consumption 0.06
2.17 Dry weight of base 350Kg
2.18 Dry weight of Gen Pac 375Kg
2.19 Overall dimension(G.P) 1155×680×835(mm)
2.2 Overall dimension(base) 810×680×800(mm)
2.21 27℃ air consumption ( m³/ min) 2.6
2.22 Fuel type #0 Diesel (Natural temperature)
2.23 Filter system Adopt whole changeable lubricating oil, fuel filter and air filter
2.24 Exhaust system Adopt industrial high efficiency muffler and ripple pipe
3. SPECIFICATIONS OF ALTERNATOR
3.1 Alternator Model UP184E
3.2 Alternator Type A.C. Synchronous
3.3 Rated Voltage 230/400V
3.4 Rated Frequency 50HZ
3.5 Rated speed 1500 RPM
3.6 Voltage regulation mode Auto
3.7 Alternator voltage regulation ±0.5%
3.8 Exciting mode Brushless self exciting
3.9 Power factor 0.8 (lagging)
3.10 Phase & wires 3 phase 12 wires
3.11 Rated currency 45.1A
3.12 Efficiency 0.862
3.13 Insulation class H
3.14 Protection class IP23
3.15 Single load step to NFPA110 100%
3.16 Standards IEC34-1,NEMA1
3.17 Max. Ambient Temperature 40℃
3.18 Min. Ambient Temperature - 20℃
3.19 Max. altitude 1000m
3.20 Weight 156KG
Please Click Here to Contact Us for More Info.


Description:


We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.

  1. The winding varnished wire

The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

  1. Silicon Steel Sheet

The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

  1. Insulating paper

The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

  1. The main frame

The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

  1. Craft

The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

  1. Component

All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.

competitive Advantage:


1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

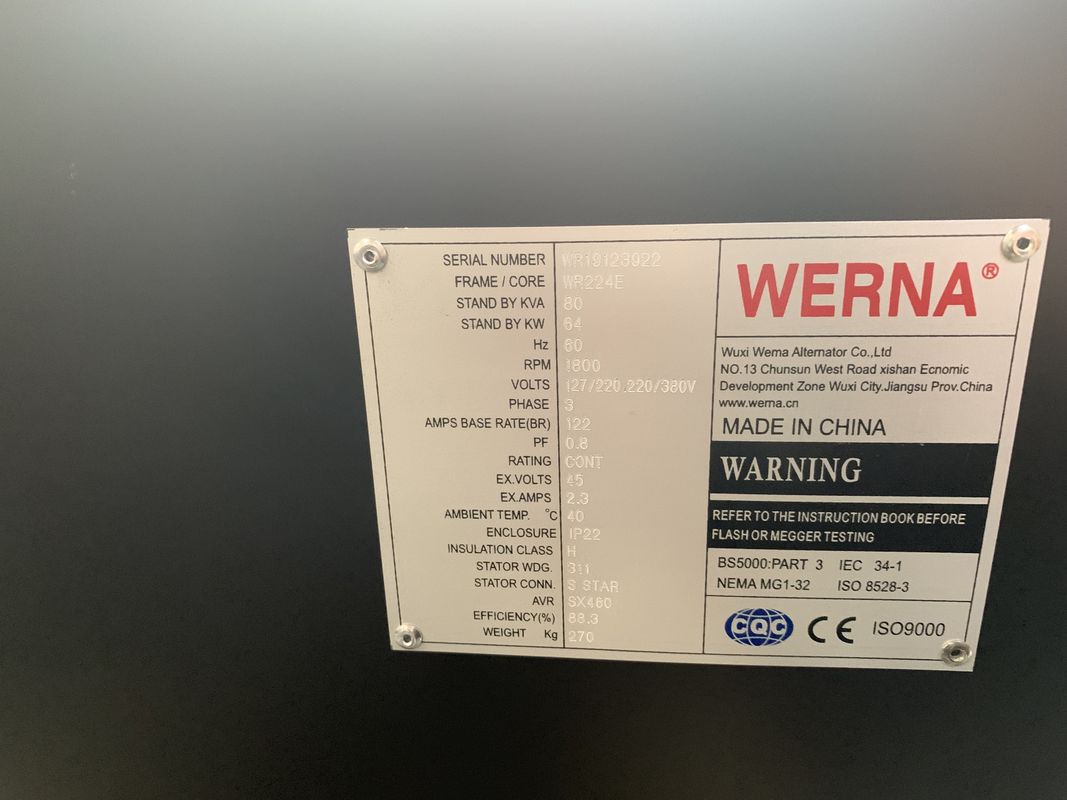

Silent 20kw 25kva 1800rpm Diesel AC Generator 0

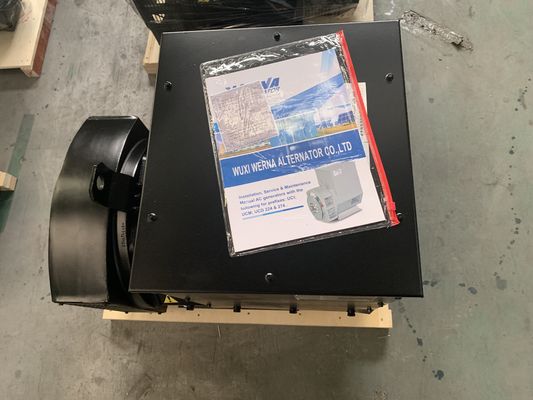

Silent 20kw 25kva 1800rpm Diesel AC Generator 1
