Home ProductsDiesel AC Generator

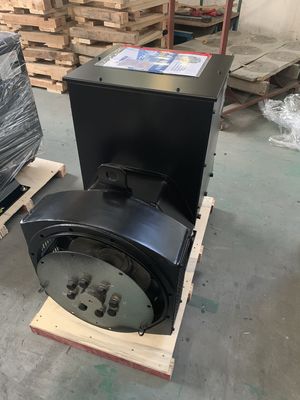

Single Phase 7kw 7kva 1500RPM Ac Diesel Generator

Single Phase 7kw 7kva 1500RPM Ac Diesel Generator

Single Phase 7kw 7kva 1500RPM Ac Diesel Generator
Single Phase 7kw 7kva 1500RPM Ac Diesel Generator
Single Phase 7kw 7kva 1500RPM Ac Diesel Generator
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR164A
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
TIF: <50 PROTECTION: IP22
INSULATION CLASS: H Rated Voltage: 380/220V
COLOUR: Oem WIRE: 100%COPPER WIRE
Highlight:

1500RPM Ac Diesel Generator

,

7kw Ac Diesel Generator

,

7kva Ac Diesel Generator







Single Phase Diesel AC Generator Green 7kw / 7kva 50hz 1500RPM

Quick Detail:



Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator


Power

          7kw

Certificate

CE,ISO9001,SASO


Specifications:



Model

WR164A

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:


Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.







Production Flow



Single Phase 7kw 7kva 1500RPM Ac Diesel Generator 0




Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.





Competitive Advantage:




1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service





Quality Inspection Process
