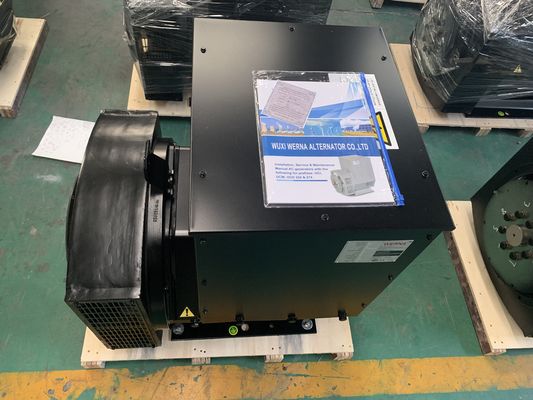

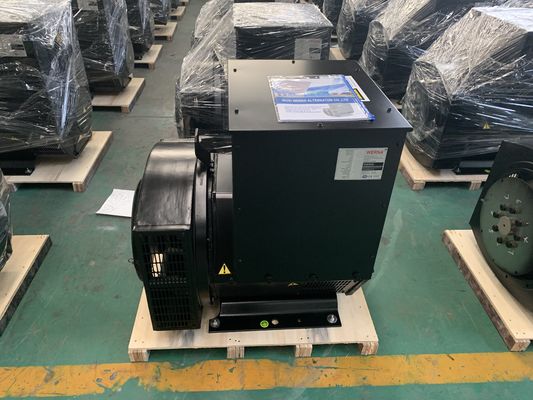

1500RPM Copper IP23 Honda Diesel Generator Set 60kw

1500RPM Copper IP23 Honda Diesel Generator Set 60kw

1500RPM Copper IP23 Honda Diesel Generator Set 60kw
1500RPM Copper IP23 Honda Diesel Generator Set 60kw
1500RPM Copper IP23 Honda Diesel Generator Set 60kw
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR224F
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Rated Current: As Per Voltage: As Per Voltage Packaging Details: Packed In Standard Seaworthy Packing (wooden Cases / Plywood Etc)
Speed: 1500RPM Material: Cold Roll Stator & 100 % Copper
Protection: Automatic Insulation Class: H
High Light:

IP23 Honda Diesel Generator Set

,

1500RPM Honda Diesel Generator Set

,

60kw Honda Diesel Generator Set



1500RPM 100 % copper Diesel AC Generator IP23 For Honda Diesel Generator Set







Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.





Quick Detail:



Name

ALTERATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator


Power

          60kw

Certificate

CE,ISO9001,SASO






Specifications:



Model

WR224F

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

60HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H








Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
