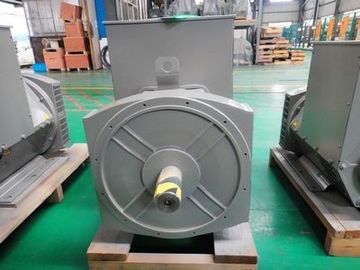

34kw 1500rpm 3 Phase Brushless Alternator Double Bearing Generator

34kw 1500rpm 3 Phase Brushless Alternator Double Bearing Generator

  • 34kw 1500rpm 3 Phase Brushless Alternator Double Bearing Generator
34kw 1500rpm 3 Phase Brushless Alternator Double Bearing Generator
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR224C
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
High Light:

three phase synchronous generator

,

three phase ac generator

34kw 1500rpm 3 Phase Brushless Alternator Double Bearing Generator



Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

34KW

Certificate

CE,ISO9001,SASO



Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

110V~690V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H



Description:

with Long experience in manufacturing alternator / ac generator,ranging6.5~120kw

for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.



1) Protection class IP23, insulation class H.

2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.

3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc

4)  Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.

5) The power factor ranges from 0.8 to 1.

6) Telephone influence factor is less than 50, according to NTMA.

7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.

8) Overload standard according to NEMA.

9) All generator statore are wound to 2/3 pitch.



Parameter:

Werna Type

3Phase 50Hz 1500rpm

Shaft length

Copper total weight

Core length

380V~415V

KVA

KW

mm

kgs

mm

WR224C

42.5

34

668.2

23.45

130

WR224D

50

40

668.2

25.35

160

WR224E

60

48

758.2

28.24

180

WR224F

72.5

58

758.2

32.84

240

WR224G

85

68

673.3

35.94

300



Why to choose Werna Alternator/generator?

1. 100% copper winding wire

2. In stock and fast delivery

3. Two year warranty

4. Best quality and competitive price

5. Two-time vacuum impregnation dipping

6. powerful quality control team

7. CE,ISO9001

8. Good after-sale service
