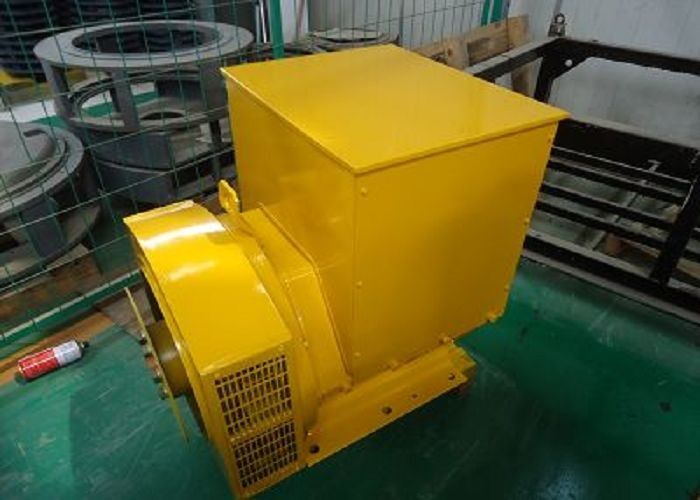

110 - 240V 70KW / 70kva Permanent Magnet Electric Generator Brushless Alternator

110 - 240V 70KW / 70kva Permanent Magnet Electric Generator Brushless Alternator

    • 110 - 240V 70KW / 70kva Permanent Magnet Electric Generator Brushless Alternator
  • 110 - 240V 70KW / 70kva Permanent Magnet Electric Generator Brushless Alternator

    Product Details:

    Place of Origin: Wuxi,China
    Brand Name: Werna
    Certification: CE,ISO9001,SASO
    Model Number: WR224G

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Contact Now
    Detailed Product Description
    High Light:

    permanent magnet alternator generator

    ,

    permanent magnet generator

    110 - 240V 70KW / 70kva Permanent Magnet Electric Generator Brushless Alternator



    Quick Detail:

    Name

    ALTERRATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

             70kw

    Certificate

    CE,ISO9001,SASO



    Specifications:

    Model

    WR224G14

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    60HZ

    Speed

    1800RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H



    Description:

    1. The winding varnished wire

    The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

    1. Silicon Steel Sheet

    The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

    1. Insulating paper

    The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

    1. The main frame

    The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

    1. Craft

    The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

    1. Component

    All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.

    1. Rotor and stator

    All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.

    1. Test

    All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of our factory should be tested by specialized Test Room.All the data such as wave form

    voltage, rate,electric resistance and so on ,will show in specialized full-automatic testing machine,and can be printed into testing report of authorized edition.



    Competitive Advantage:

    1. 100% copper winding wire

    2. In stock and fast delivery

    3. Two year warranty

    4. Best quality and competitive price

    5. Two-time vacuum impregnation dipping

    6. CE,ISO9001

    7. Good after-sale service
