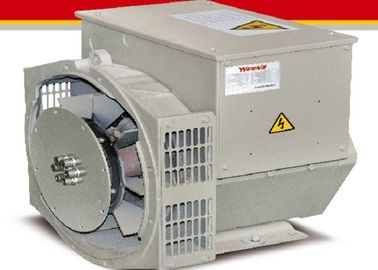

Insulation H class Single Phase Diesel Generator From 7kw - 155kw 60HZ
Product Details
brushless synchronous alternator
,brushless alternator generator
Insulation H class Single Phase Diesel Generator From 7kw - 155kw 60HZ
Quick Detail:
| Place of Origin: | Wuxi ,China | Brand Name: | Werna | Model Number: | copy stamford series |
| Model: | copy stamford series | Output: | 7kw-155kw | Frequency: | 50/60HZ |
| RPM: | 1500/1800 | Phase: | single | Poles: | 4 |
| Protection grade: | IP22 | Insulation class: | H class | Warranty: | 2 year |
Specifications
|
Model |
WR164B16 |
|
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output Type |
AC Single Phase diesel generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
110-240V |
|
Frequency |
50/60HZ |
|
Speed |
1500/1800RPM |
|
Mounting dimensions |
Stamford Type |
|
Winding Pitch |
2 / 3 pitch |
|
Excitation |
Brushless, self-excited, synchronous |
|
Insulation Class |
H |
Description:
with long experience in manufacturing alternator / ac generator.
Generator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
Generator Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Generator Insulation and Protection
Insulation: H, Protection: IP22
Generator Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Generator Winding
All generator stators are wound to 2/3 pitch.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
6. CE,ISO9001
7. Good after-sale service
