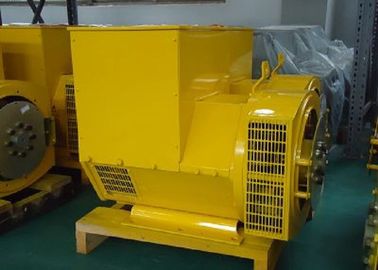

28kw / 28kva Brushless AC Single Phase Diesel Generator For Caterpillar Genset

28kw / 28kva Brushless AC Single Phase Diesel Generator For Caterpillar Genset

    • 28kw / 28kva Brushless AC Single Phase Diesel Generator For Caterpillar Genset
  • 28kw / 28kva Brushless AC Single Phase Diesel Generator For Caterpillar Genset

    Product Details:

    Place of Origin: Wuxi,China
    Brand Name: Werna
    Certification: CE,ISO9001,SASO
    Model Number: WR184J

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Contact Now
    Detailed Product Description
    High Light:

    brushless synchronous alternator

    ,

    brushless alternator generator

    28kw / 28kva Brushless AC Single Phase Diesel Generator For Caterpillar Genset



    Quick Detail:

    Name

    ALTERNATOR

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

             28kw/28kva

    Certificate

    CE,ISO9001,SASO


    Specifications

    Model

    WR184J16

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    50HZ

    Speed

    1500RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H


    Description:
    1) Any permanent magnetic generators, providing invariable excitation on all occasions.
    2) Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline  current.
    3) Balanced rotor with single or two sealed ball bearings
    4) Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
    5) Wide range of Flange adaptor and single bearing coupling disc Meet leading standards



    ELECTRIC FEATURES

    INSULATION

    Insulation Class H

    All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

    Winding and electric features:

    2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline

    A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.

    Phone interference

    THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50

    Radio interference

    Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.



    Quality Assurance



    Factory Inspection, the test items before delivery are mainly as follows:



    1. Each genset shall be put into commission more than 4 hours totally.



    They are tested on idle load, fully load and 10% overload



    2. The noise level is tested



    3. All of the meters on the control panel shall be tested



    4. The appearance of the genset and all of the label and nameplate shall be checked



    FAQ:

      1. Q:When was your company established?

           A:in 2005

      2. What is your main products?

           A: Alternator, diesel generator, Motor.



      3. What certificate you get?

           A: We pass ISO9001-2008 and approved by CE,SASO.



      4. Q: What is your MOQ of this item?

           A: 1-10PCS



      5. Q: What is the deliverytime?

           A: 15-20 days after receiving your  TT deposit.



      6. Q: Is it all right to make customer's own brand name?

           A: We can be your OEM manufacture with your authorization of brand.



      7. Q: Where is your Loading Port?

           A: Shanghai, China Port.



      8. Q: What are your payment terms?

           A: 30% deposit and balance T/T against copy of Bill of Lading..



       9. Q: What is your company's available production capacity?

           A: 3000-5000 pieces against your orders.



    Why to choose Werna Alternator/generator?
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8. Good after-sale service
