| Place of Origin: | Wuxi,China |
| Brand Name: | Werna |
| Certification: | CE,ISO9001,SASO |
| Model Number: | WR184J |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | Within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| High Light: | 3 phase ac generator,3 phase portable generator |
||
|---|---|---|---|

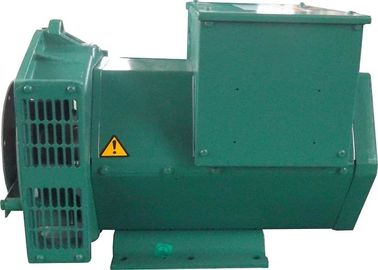

40kw / 50kva 1800rpm Self-excited Three Phase AC Generator IP23 For Generator Set
Quick detail:
|
Name |
ALTERNATOR |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
40KW |
Certificate |
CE,ISO9001,SASO |
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
208V~480V |
|
Frequency |
60Hz |
|
Speed |
1800RPM |
|
Mounting Dimension |
Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchrous |
|
Insulation Class |
H |
Technical Datas
| Werna Type | 3Phase 60Hz 1800rpm | Shaft length | Copper total weight | Core length | |
| 208V~480V | |||||
| KVA | KW | mm | kgs | mm | |
| WR164A | 10.2 | 8.2 | 373.16 | 9.98 | 65 |
| WR164B | 13.8 | 11 | 373.16 | 11.18 | 80 |
| WR164C | 16.9 | 13.5 | 400.16 | 11.6 | 100 |
| WR164D | 20.2 | 16 | 400.16 | 11.88 | 115 |
| WR184E | 28.8 | 23 | 440.16 | 14.72 | 150 |
| WR184F | 34.4 | 27.5 | 530.16 | 16.2 | 190 |
| WR184G | 37.5 | 30 | 530.16 | 17.8 | 230 |
| WR184H | 46.9 | 37.5 | 673.3 | 19.21 | 255 |
| WR184J | 50 | 40 | 673.3 | 20.48 | 285 |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Winding
All generator stators are wound to 2/3 pitch.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
