Place of Origin: | Wuxi,China |
Brand Name: | Werna |
Certification: | CE,ISO9001,SASO |
Model Number: | WR184G |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | Plywood |
Delivery Time: | Within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000units/month |
Highlight: | 3 phase ac generator,3 phase portable generator |
---|

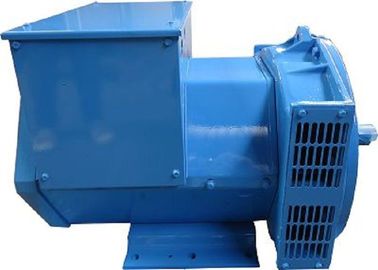

Blue High Speed Three Phase AC Generator / Alternator 30kw / 37.5kva 60hz
Quick detail:
Name |
ALTERNATOR |
Brand Name |
WERNA |
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
Power |
30KW |
Certificate |
CE,ISO9001,SASO |
Specication:
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
Output type |
AC Three Phase Brushless generator |
Terminal |
12 / 6 Wire |
Rated Voltage |
208V~480V |
Frequency |
60Hz |
Speed |
1800RPM |
Mounting Dimension |
Stamford Type |
Winding pitch |
2/3 pitch |
Excitation |
Brushless, self-excited, synchro |
Insulation Class |
H |
Technical Datas
Werna Type | 3Phase 60Hz 1800rpm | Shaft length | Copper total weight | Core length | |
208V~480V | |||||
KVA | KW | mm | kgs | mm | |
WR164A | 10.2 | 8.2 | 373.16 | 9.98 | 65 |
WR164B | 13.8 | 11 | 373.16 | 11.18 | 80 |
WR164C | 16.9 | 13.5 | 400.16 | 11.6 | 100 |
WR164D | 20.2 | 16 | 400.16 | 11.88 | 115 |
WR184E | 28.8 | 23 | 440.16 | 14.72 | 150 |
WR184F | 34.4 | 27.5 | 530.16 | 16.2 | 190 |
WR184G | 37.5 | 30 | 530.16 | 17.8 | 230 |
WR184H | 46.9 | 37.5 | 673.3 | 19.21 | 255 |
WR184J | 50 | 40 | 673.3 | 20.48 | 285 |
Description:
with long experience in manufacturing alternator / ac generator.
Alternator Power Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
