| Place of Origin: | Wuxi,China |
| Brand Name: | Werna |
| Certification: | CE,ISO9001,SASO |
| Model Number: | WR634E |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | Within 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000units/month |
| High Light: | 3 phase portable generator,three phase alternator |
||
|---|---|---|---|

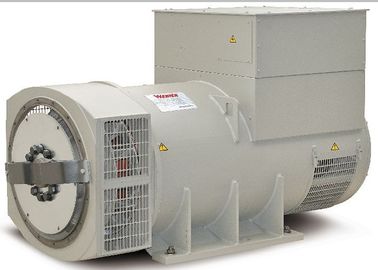

Synchronous Excitation 3 Phase AC Generator 916kw 1145kva 60hz 208v - 480v
Quick detail:
|
Name |
ALTERNATOR |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
916KW |
Certificate |
CE,ISO9001,SASO |
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
208V~480V |
|
Frequency |
60Hz |
|
Speed |
1800RPM |
|
Mounting Dimension |
Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchro |
|
Insulation Class |
H |
Technical data
| Werna Type | 3Phase 50Hz 1500rpm | Shaft length | Copper total weight | Core length | |
| 380V~415V | |||||
| KVA | KW | mm | kgs | mm | |
| WR634B |
750 |
600 | 1459.2 | 212.2 | 355 |
| WR634C | 800 | 640 | 1459.2 | 222.2 | 380 |
| WR634D | 910 | 728 | 1459.2 | 234.2 | 410 |
| WR634E | 1000 | 800 | 1459.2 | 251.2 | 465 |
| WR634F | 1130 | 904 | 1459.2 | 283.2 | 560 |
| WR634G | 1250 | 1000 | 1560.2 | 303.2 | 675 |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Why to choose Werna Alternator/generator?
1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23
