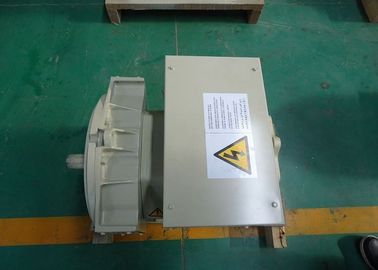

Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set

Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set

  • Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set
Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR182k
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Highlight:

Copy Stamford Small Brushless Alternator

,

Small Brushless Alternator 37.5kva

,

3000rpm Small Brushless Alternator

Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set


Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

30KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

190V~454V

Frequency

50Hz

Speed

3000RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
8) Overload standard according to NEMA.
9) All generator statore are wound to 2/3 pitch.

 Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP22

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch



FAQ:

1. Q:When was your company established?

       A:in 2005

2. Q: What is your main products?

       A: Alternator

3. Q: What certificate you get?

       A: We pass ISO9001 and approved by CE.

4. Q: What is your MOQ of this item?

       A: 1-10PCS

5. Q: What is the lead time?

       A: 25-30 days after receiving your L/C or TT deposit.

6. Q: Is it all right to make customer's own brand name?

       A: We can be your OEM manufacture with your authorization of brand.

7. Q: Where is your Loading Port?

       A: Shanghai, China Port.

8. Q: What are your payment terms?

       A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.

9. Q: What is your company's available production capacity?

       A: 3000-5000 pieces against your orders.

Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set 0

Copy Stamford Small Brushless Alternator 37.5kva 3000rpm For DEUTZ Generator Set 1
