Place of Origin: | Wuxi,China |
Brand Name: | Werna |
Certification: | CE,ISO9001,SASO |
Model Number: | WR162E |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | Plywood |
Delivery Time: | Within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000units/month |
Highlight: | self-excited ac generator,brushless synchronous generator |
---|

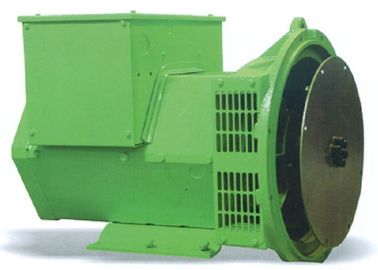

Small 12kw / 15kva Brushless AC Generator With 2 / 3 Pitch For Perkins Generator Set
Quick Detail:
Name |
Alternator |
Brand Name |
WERNA |
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator
|
Power |
12kw |
Certificate |
CE,ISO9001,SASO |
Specifications:
Model |
WR162E |
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
Output Type |
AC Three Phase diesel generator |
Terminal |
12 / 6 Wire |
Rated Voltage |
190-454V |
Frequency |
50HZ |
Speed |
3000RPM |
Mounting dimensions |
Stamford Type |
Winding Pitch |
2 / 3 pitch |
Excitation |
Brushless, self-excited, synchronous |
Insulation Class |
H |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Generator with permanent magnet 12kw/15kva
Technical data
Werna Type | 3Phase 50Hz3000rpm | Shaft Length | Copper total weight | Core length | |
380V~415V | |||||
KVA | KW | mm | kgs | mm | |
WR162D | 12.5 | 10 | 373.16 | 12.22 | 66 |
WR162E | 15 | 12 | 373.16 | 13.02 | 88 |
WR162F | 17.5 | 14 | 425.16 | 13.44 | 102 |
WR162G | 25 | 20 | 425.16 | 15.2 | 140 |
WR182H | 30 | 24 | 490.16 | 15.88 | 160 |
WR182J | 35 | 28 | 490.16 | 17.19 | 190 |
WR182K | 37.5 | 30 | 530.16 | 18.48 | 225 |
FAQ
1. Q: What is the lead time?
A: 25-30 days after receiving your L/C or TT deposit.
2. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
3. Q: Where is your Loading Port?
A:Shanghai, China Port.
4. Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
5. Q: What is your company's available production capacity?
A: 3000-5000 pieces against your orders.
