Place of Origin: | Wuxi,China |
Brand Name: | Werna |
Certification: | CE,ISO9001,SASO |
Model Number: | WR444E |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | Plywood |
Delivery Time: | Within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000units/month |
Highlight: | 350kva Excitation Permanent Magnet Alternator,permanent magnet synchronous generator,AC Diesel Generator 280kw |
---|

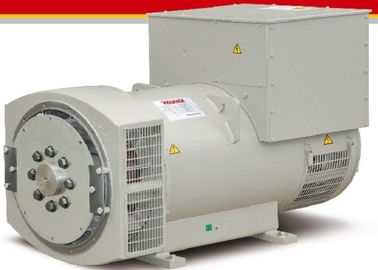

280kw / 350kva Excitation Permanent Magnet Alternator / AC Diesel Generator
Quick Detail:
Name |
ALTERNATOR |
Brand Name |
WERNA |
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator
|
Power |
280kw |
Certificate |
CE,ISO9001,SASO |
Specifications:
Model |
WR444E |
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
Output Type |
AC Three Phase diesel generator |
Terminal |
12 / 6 Wire |
Rated Voltage |
190-454V |
Frequency |
50HZ |
Speed |
1500RPM |
Mounting dimensions |
Stamford Type |
Winding Pitch |
2 / 3 pitch |
Excitation |
Brushless, self-excited, synchronous |
Insulation Class |
H |
Description:
The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.
The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.
The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.
The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.
The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.
All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.
All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.
All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of our factory should be tested by specialized Test Room.All the data such as wave form
voltage, rate,electric resistance and so on ,will show in specialized full-automatic testing machine,and can be printed into testing report of authorized edition.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
