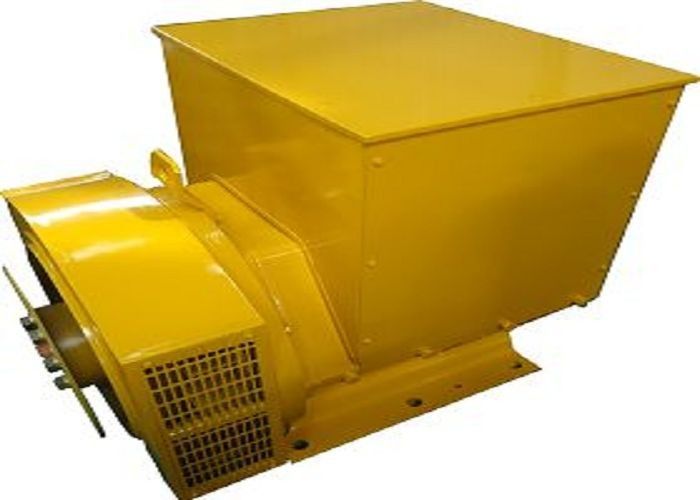

94kw / 118kva Three Phase Synchronous Generator Excitation Alternator Class H

94kw / 118kva Three Phase Synchronous Generator Excitation Alternator Class H

  • 94kw / 118kva Three Phase Synchronous Generator Excitation Alternator Class H
94kw / 118kva Three Phase Synchronous Generator Excitation Alternator Class H
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR274C
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Highlight:

three phase synchronous generator

,

3 phase alternator

 94kw / 118kva Three Phase Synchronous Generator Excitation Alternator Class H
Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

94KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

208~480V

Frequency

60Hz

Speed

1800RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H

Description:
1. Optional permanent magnetic ac alternator , provide invariable excitation in any situation.
2. Easy to be connected with power network or other ac generator. Standard 2/3pitch windings avoid excessive neutral current.
3. Dynamically balanced rotors, with single or two sealed ball bearings.
4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptor and single bearing coupling disc.
6. Built to conform to all leading industrial standards.

The advantage of our material:
1. Winding enamelled wire is 100% copper

2. The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.
3. The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.
4. All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.
5. All the rotors and stators of our company use the rope of best nylon to tie.We promise the security of our products,the phenomenon of ribbon burst will never happen.
6. All the rotors should be tested by dynamic balance of Germany to go on test of balance. All the products of  our factory should be tested by specialized Test Room.

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. Good after-sale service
Production line
94kw / 118kva Three Phase Synchronous Generator Excitation Alternator Class H 0
