Place of Origin: | Wuxi,China |
Brand Name: | Werna |
Certification: | CE,ISO9001,SASO |
Model Number: | WR224F |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | Plywood |
Delivery Time: | Within 10 days |
Payment Terms: | T/T |
Supply Ability: | 1000units/month |
Highlight: | 3 phase ac generator,3 phase portable generator |
---|

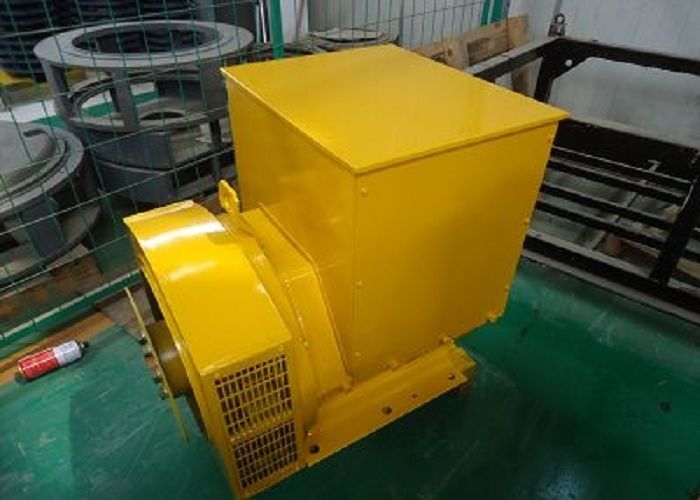

1500RPM 6.5kw - 1720kw 3 Phase AC Generator 60hz For MTU Generator Set
Quick detail:
Name |
ALTERNATOR |
Brand Name |
WERNA |
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
Power |
6.5-1720KW |
Certificate |
CE,ISO9001,SASO |
Specication:
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
Output type |
AC Three Phase Brushless generator |
Terminal |
12 / 6 Wire |
Rated Voltage |
190V~454V |
Frequency |
50Hz |
Speed |
1500RPM |
Mounting Dimension |
Stamford Type |
Winding pitch |
2/3 pitch |
Excitation |
Brushless, self-excited, synchro |
Insulation Class |
H |
Werna Type | 3Phase 50Hz 1500rpm | Shaft length | Copper total weight | Core length | |
380V~415V | |||||
KVA | KW | mm | kgs | mm | |
WR224C | 42.5 | 34 | 668.2 | 23.45 | 130 |
WR224D | 50 | 40 | 668.2 | 25.35 | 160 |
WR224E | 60 | 48 | 758.2 | 28.24 | 180 |
WR224F | 72.5 | 58 | 758.2 | 32.84 | 240 |
WR224G | 85 | 68 | 673.3 | 35.94 | 300 |
Description:
with long experience in manufacturing alternator / ac generator.
Alternator Power Ranging 6.5 --1720KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
