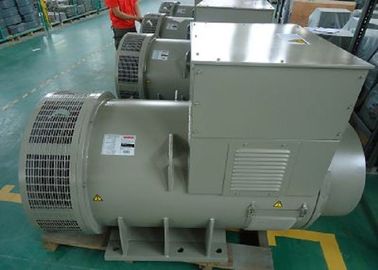

Self Exciting Three Phase AC Generator 60hz 800kw / 1000kva

Self Exciting Three Phase AC Generator 60hz 800kw / 1000kva

    • Self Exciting Three Phase AC Generator 60hz 800kw / 1000kva
  • Self Exciting Three Phase AC Generator 60hz 800kw / 1000kva

    Product Details:

    Place of Origin: Wuxi,China
    Brand Name: Werna
    Certification: CE,ISO9001,SASO
    Model Number: WR634E

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Contact Now
    Detailed Product Description
    High Light:

    3 phase ac generator

    ,

    3 phase portable generator

    Self Exciting Three Phase AC Generator 60hz 800kw / 1000kva



    Quick detail:

    Name:alternator                                  Brand name :WERNA

    Color:According to the international standard color card

    Feature:Ac brushless synchronous eccitation alternator

    Certificate:CE,ISO9001,SASO


    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    190V~454V

    Frequency

    50Hz

    Speed

    1500RPM

    Mounting Dimension

    Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H



    Technical data

    Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
    380V~415V
    KVA KW mm kgs mm
    WR634B

    750

    600 1459.2 212.2 355
    WR634C 800 640 1459.2 222.2 380
    WR634D 910 728 1459.2 234.2 410
    WR634E 1000 800 1459.2 251.2 465
    WR634F 1130 904 1459.2 283.2 560
    WR634G 1250 1000 1560.2 303.2 675







    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

    Insulation and Protection
    Insulation: H, Protection: IP23
     IP23 is for optional but the rated power will decrease 5%.

     Voltage Regulators(AVR)
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

     Winding
    All generator stators are wound to 2/3 pitch.
    with long experience in manufacturing alternator / ac generator.
    Alternator brushless for aksa generator Ranging 6.5 --1200KW
    for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.

    Advantages of Werna Alternator/generator?

    1, Advanced AVR :SX460 &SX440
    2, H class insulation ensure the generator running in dreadful conditions
    3, The 2/3 pitch design avoids excessive neutral currents
    4, You can reconnect 12 ends of the terminals to meet other voltage
    5, Single bearing and double bearing ,single phase and three phases
    6, Standard IP23
