| Place of Origin: | WUXI CITY,CHINA |
| Brand Name: | WERNA |
| Certification: | ISO CE SASO |
| Model Number: | WR184H |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | STRONG PLYWOOD CASE |
| Delivery Time: | 15-20DAYS |
| Supply Ability: | 1200PCS MONTH |
| WIRE: | 100%COPPER WIRE | COLOUR: | ACCORDING TO YOUR REQUEST |
|---|---|---|---|
| WARRANTRY: | 2 YEARS | INSULATION CLASS: | H |
| PROTECTION CLASS: | IP22 | ||
| Highlight: | 30KW Brushless AC Electric Alternators,AC Electric Alternators Single Phase,3 Pitch AC Electric Alternators |
||

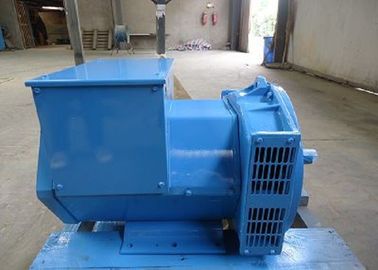

30KW Brushless AC Electric Alternators Single Phase With 2 / 3 Pitch
Quick Detail:
|
Name |
Alternator |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
30kw/37KVA |
Certificate |
CE,ISO9001,SASO |
Specifications:
|
Model |
WR184H |
|
manufacturer |
Wuxi City ,Jiangsu Prov ,China |
|
Output Type |
AC Single Phase |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
220-480V |
|
Frequency |
50HZ |
|
Speed |
1500RPM |
|
Mounting dimensions |
Stamford Type |
|
Winding Pitch |
2 / 3 pitch |
|
Excitation |
Brushless, self-excited, synchronous |
|
Insulation Class |
H class |
Description:
with Long experience in manufacturing alternator / ac generator,ranging6.5~120kw
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or
Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable
for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR. MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
