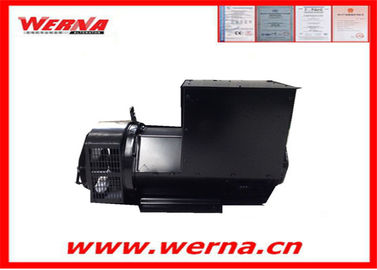

High Speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw

High Speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw

  • High Speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw
High Speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR182K
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
High Light:

Single Phase Brushless Ac Generator

,

37.5kva Brushless Ac Generator

,

Brushless Ac Generator 30kw

High speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw



FEATURE:
(1)Can be coupled with any permanent magnetic generators providing invariable excitation on all occasions.
(2)Comply with the most common standard in terms of GB755,IEC60034,BS5000,VDE0530,CSAC222-100
(3)Single or double bearings are available,options for all kinds of adaptors and disc plates
(4)12-end reconnectable winding terminals to get different voltages
(5)Standard “H” insulation class
(6)Convenient installation and maintenance for lead-end rotated diodes and adaptor connected bolts
(7)Standard sealed maintenance-free bearings
(8)Standard IP23 protection,optional severe environment protection





Quick Detail:

Name

  Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator



Power

        30kw

Certificate

CE,ISO9001,SASO




Specifications:

Model

WR182L

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

190-454V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H




Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.


Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service



Quality Control Surveillance

High Speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw 0
High Speed Single Phase Brushless Ac Generator With SX460 AVR 37.5kva / 30kw 1
