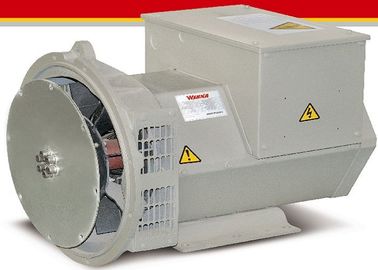

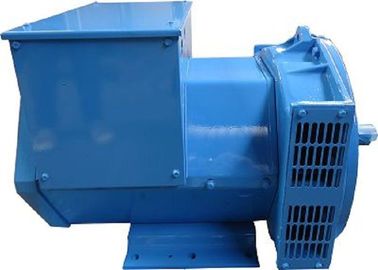

200KW Brushless AC Generator AVR 50Hz 1500RPM 2/3 Pitch

200KW Brushless AC Generator AVR 50Hz 1500RPM 2/3 Pitch

  • 200KW Brushless AC Generator AVR 50Hz 1500RPM 2/3 Pitch
  • 200KW Brushless AC Generator AVR 50Hz 1500RPM 2/3 Pitch
200KW Brushless AC Generator AVR 50Hz 1500RPM 2/3 Pitch
Product Details:
Place of Origin: WUXI CITY,CHINA
Brand Name: WERNA
Certification: CE ,ISO .,SASO
Model Number: WR274K16
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD 2064
Packaging Details: plywod
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs/1 month
Contact Now
Detailed Product Description
Insulation Class: Class H Protection Class: IP22
Warrantry: 2 Years Rated Voltage: 190-454v
Winding Pitch: 2 / 3 Pitch Excitation: Brushless, Self-excited, Synchro
High Light:

self-excited ac generator

,

brushless ac alternator

200KW Brushless AC Generator AVR 50Hz 1500RPM 2/3 Pitch

1. factory,wuxi china,half hour to shanghai
2. 90% products sell overseas
Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature


AC brushless synchronous excitation alternator


Power

         200kw/250KVA

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR274K

manufacturer

Wuxi City ,Jiangsu Prov ,China

Output Type

AC Single Phase

Terminal

12 / 6 Wire

Rated Voltage

220-480V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H class


Description:
with Long experience in manufacturing alternator / ac generator,ranging6.5~120kw
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or
Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable
for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4)  Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.

Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Production line

Werna factory provides high quality generator sets and alternator,each one is strictly test before Export . After service and spart parts are availabale from our factory.



warrantee:2 years. During the warranted time, our company would be responsible for problems caused by quality of production or raw material.After expiration, our company provides cost maintenance. Further terms could be negotiable!
ATTENTION!!!WHY CHOSE WUXI WERNA???



our advantages
1. more than 5 years's experience in manufacturing generators&alternators
2. strong QC teams ,experienced sales people &skilled workers
3. 100% tested & waranteed before shipment to assure the top quality
4. ISO9001 SASO CE GS
5. T/T,L/C
6. prices:at least 5% lower  than the market
7. Fast delivery time ,normally 10 days
