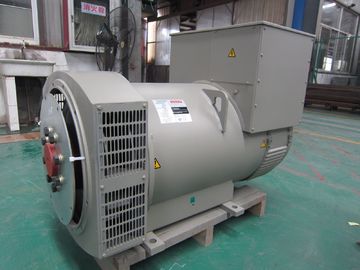

Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw

Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw

  • Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw
Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw
Product Details:
Place of Origin: Wuxi,China
Brand Name: WERNA
Certification: CE,ISO9001,SASO
Model Number: WR182K
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 681 FOB SHANGHAI
Packaging Details: Plywood
Delivery Time: ± 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Contact Now
Detailed Product Description
Wire: 100% Copper Wire Warranty: 2 Years
Life Time: 20 Years Color: Optional
Protection: IP22/23 Insulation Class: H
High Light:

self-excited ac generator

,

brushless synchronous generator

Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw

Quick Detail:

Name

  Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator


Power

        30kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR182L

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

190-454V

Frequency

50HZ

Speed

3000RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw 0
Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

Quality Control Surveillance
Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw 1
Single Phase AC Brushless Generator High speed SX460 AVR 37.5kva / 30kw 2
