Portable Three Phase AC Brushless Generator 20kw 50hz Diesel

Portable Three Phase AC Brushless Generator 20kw 50hz Diesel

  • Portable Three Phase AC Brushless Generator 20kw 50hz Diesel
Portable Three Phase AC Brushless Generator 20kw 50hz Diesel
Product Details:
Place of Origin: Wuxi,China
Brand Name: WERNA
Certification: CE,ISO9001,SASO
Model Number: WR184FS16
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 524 FOB SHANGHAI
Packaging Details: Plywood
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Contact Now
Detailed Product Description
Wire: 100% Copper Wire Warranty: 2 Years
Life Time: 20 Years Insulation Class: H
Protection: IP22/23 THF: <2%
Highlight:

single phase diesel generator

,

synchronous diesel generator

Portable Three Phase AC Brushless Generator 20kw 50hz Diesel


Quick Detail:

Name

ALTERATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator


Power

          20kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR184FS16

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
6. CE,ISO9001
7. Good after-sale service

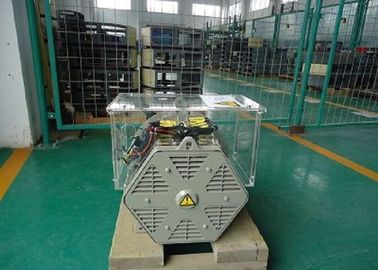

Portable Three Phase AC Brushless Generator 20kw 50hz Diesel 0
