| Place of Origin: | Wuxi,China |
| Brand Name: | WERNA |
| Certification: | CE,ISO9001,SASO |
| Model Number: | WR634E |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD 7169 FOB SHANGHAI |
| Packaging Details: | Plywood |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units/month |
| Wire: | 100% Copper Wire | Warranty: | 2 Years |
|---|---|---|---|
| Life Time: | 20 Years | Insulation Class: | H |
| Protection: | IP 22/23 | Color: | Optional |
| High Light: | 3 phase portable generator,three phase alternator |
||

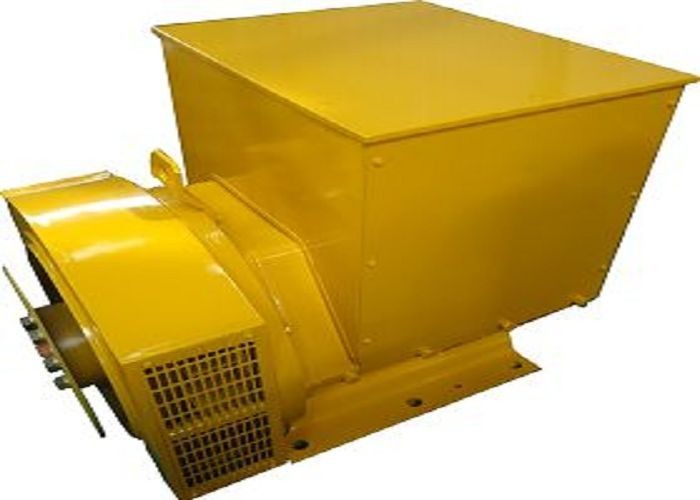

IP23 Three Phase AC Generator Yellow 800kw / 1000kva 60hz
Quick detail:
Name:alternator Brand name :WERNA
Color:According to the international standard color card
Feature:Ac brushless synchronous eccitation alternator
Certificate:CE,ISO9001,SASO
Specication:
|
manufacture |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output type |
AC Three Phase Brushless generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
190V~454V |
|
Frequency |
50Hz |
|
Speed |
1500RPM |
|
Mounting Dimension |
Stamford Type |
|
Winding pitch |
2/3 pitch |
|
Excitation |
Brushless, self-excited, synchro |
|
Insulation Class |
H |
Technical data
| Werna Type | 3Phase 50Hz 1500rpm | Shaft length | Copper total weight | Core length | |
| 380V~415V | |||||
| KVA | KW | mm | kgs | mm | |
| WR634B |
750 |
600 | 1459.2 | 212.2 | 355 |
| WR634C | 800 | 640 | 1459.2 | 222.2 | 380 |
| WR634D | 910 | 728 | 1459.2 | 234.2 | 410 |
| WR634E | 1000 | 800 | 1459.2 | 251.2 | 465 |
| WR634F | 1130 | 904 | 1459.2 | 283.2 | 560 |
| WR634G | 1250 | 1000 | 1560.2 | 303.2 | 675 |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP23
IP23 is for optional but the rated power will decrease 5%.
Voltage Regulators(AVR)
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
with long experience in manufacturing alternator / ac generator.
Alternator brushless for aksa generator Ranging 6.5 --1200KW
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or Double bearing, Brush or brushless, Self-excited. Abounds with almost every model in stock.
Advantages of Werna Alternator/generator?
1, Advanced AVR :SX460 &SX440
2, H class insulation ensure the generator running in dreadful conditions
3, The 2/3 pitch design avoids excessive neutral currents
4, You can reconnect 12 ends of the terminals to meet other voltage
5, Single bearing and double bearing ,single phase and three phases
6, Standard IP23
