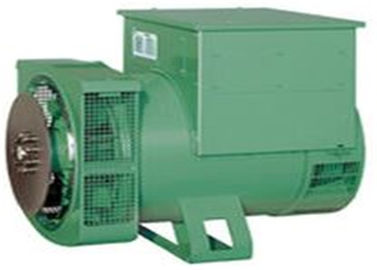

Magnetic Brushless Alternator , AC Single Phase Diesel Generator 25KW 60HZ

Magnetic Brushless Alternator , AC Single Phase Diesel Generator 25KW 60HZ

    • Magnetic Brushless Alternator ,  AC Single Phase Diesel Generator 25KW 60HZ
  • Magnetic Brushless Alternator ,  AC Single Phase Diesel Generator 25KW 60HZ

    Product Details:

    Place of Origin: Wuxi,China
    Brand Name: Werna
    Certification: CE,ISO9001,SASO
    Model Number: WR184G

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Contact Now
    Detailed Product Description
    Manufacturer: Wuxi City ,Jiangsu Prov ,China Making Alternators Rated Voltage: 190-454v
    Excitation: Brushless, Self-excited, Synchro Warranty: 2 Years
    Life Time: More Than 20 Years Package: Plywood
    High Light:

    ac synchronous generator

    ,

    brushless alternator generator

    Magnetic Brushless Alternator ,  AC Single Phase Diesel Generator 25KW 60HZ



    Quick Detail:

    Name

    Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator



    Power

              25kw

    Certificate

    CE,ISO9001,SASO


    Specifications:

    Model

    WR184G

    manufacturer

     Wuxi City ,Jiangsu Prov ,China making alternators

    Output Type

    AC Single Phase diesel generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110-240V

    Frequency

    60HZ

    Speed

    1800RPM

    Mounting dimensions

    Stamford Type

    Winding Pitch

    2 / 3 pitch

    Excitation

    Brushless, self-excited, synchronous

    Insulation Class

    H



    Werna Type 1Phase 60Hz1800rpm Shaft Length Copper total weight Core length
          220V~240V / 1.0
    KVA KW mm kgs mm
    WR164A 8.2 8.2 373.16 9.08 65
    WR164B 11 11 373.16 9.59 80
    WR164C 13.5 13.5 400.16 10.28 100
    WR164D 16.5 16.5 400.16 10.66 115
    WR184E 22.3 22.3 440.16 12.48 150
    WR184F 26.1 26.1 530.16 13.9 190
    WR184G 30.8 30.8 530.16 15.4 230



    Description:
    Frequency And Voltage
    50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
    Insulation and Protection
    Insulation: H, Protection: IP23
    Voltage Regulators
    The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
    Winding
    All generator stators are wound to 2/3 pitch.
    The quality management system of our factory
    A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
    Competitive Advantage:
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    7. CE,ISO9001
    8.Good after-sale service
    Magnetic Brushless Alternator ,  AC Single Phase Diesel Generator 25KW 60HZ 0
