1800RPM Class H 12KW AC Power Generator Cummins Generator Set Use

1800RPM Class H 12KW AC Power Generator Cummins Generator Set Use

  • 1800RPM Class H 12KW AC Power Generator Cummins Generator Set Use
1800RPM Class H 12KW AC Power Generator Cummins Generator Set Use
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR274F
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Life Time: 20 Years Packing: Plywood
Insulation Class: H Wire: 100% Copper Wire
Warranty: 2 Years Color: Optional
High Light:

brushless ac alternator

,

brushless synchronous generator

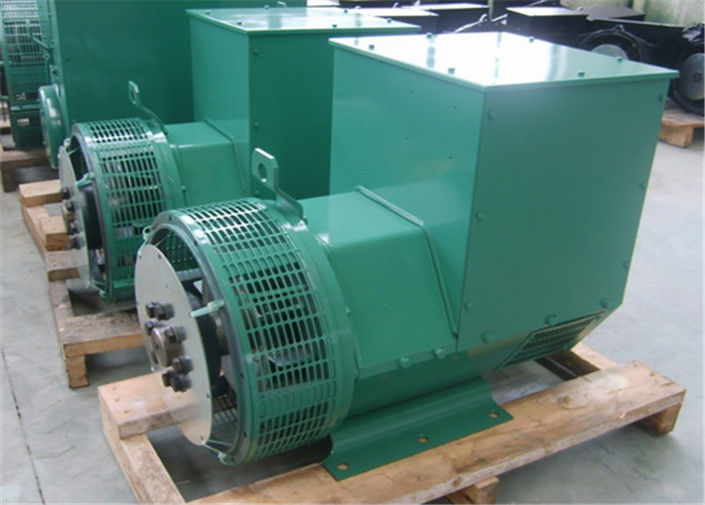

Class H 12KW Brushless AC Generator  For Cummins Generator Set  1800 RPM




Quick Detail:







 Name :Alternator                         Brand Name :WERNA

Color:According to the international standard color card

Feature :AC brushless synchronous excitation alternator

Certificate:CE,ISO9001,SASO







Specifications:

Model

WR162F

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1800RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H

Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.

Quality Control Surveillance

1800RPM Class H 12KW AC Power Generator Cummins Generator Set Use 0


1800RPM Class H 12KW AC Power Generator Cummins Generator Set Use 1
