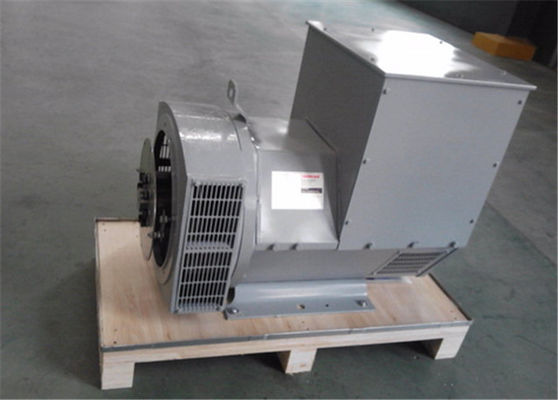

28kw Brushless AC Generator With 12 / 6 Wire Terminal 110 - 240V
Product Details
brushless ac alternator
,brushless synchronous generator
,28kw brushless exciter synchronous generator
28kw Brushless Synchronous AC Alternator Generator With 12 / 6 Wire Terminal
Quick Detail:
|
Name |
Alternator |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator
|
|
Power |
28kw |
Certificate |
CE,ISO9001,SASO |
Specifications:
|
Model |
WR182L |
|
manufacturer |
Wuxi City ,Jiangsu Prov ,China making alternators |
|
Output Type |
AC Single Phase diesel generator |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
110-240V |
|
Frequency |
50HZ |
|
Speed |
3000RPM |
|
Mounting dimensions |
Stamford Type |
|
Winding Pitch |
2 / 3 pitch |
|
Excitation |
Brushless, self-excited, synchronous |
|
Insulation Class |
H |
Description:
Frequency And Voltage
50Hz or 60Hz as per customer’s request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.
Insulation and Protection
Insulation: H, Protection: IP22
Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.
Winding
All generator stators are wound to 2/3 pitch.
The quality management system of our factory
A set of integrated quality management system,there are standard imported checking rules of every component.All the suppliers should be selected and checked strictly by our factory,all the materials should be appointed specially after the strict selection by our factory.
FAQ
1. Q: What is the lead time?
A: 25-30 days after receiving your L/C or TT deposit.
2. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
3. Q: Where is your Loading Port?
A: Shanghai, China Port.
4. Q: What are your payment terms?
A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
5. Q: What is your company's available production capacity?
A: 3000-5000 pieces against your orders.
