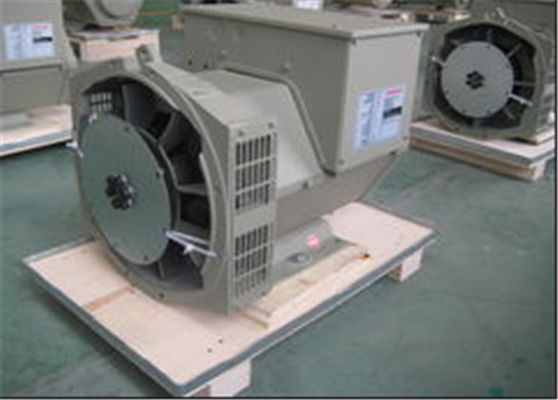

Self Exciting Synchronous Small Diesel Generators 80kw 80kva 50HZ

Self Exciting Synchronous Small Diesel Generators 80kw 80kva 50HZ

  • Self Exciting Synchronous Small Diesel Generators 80kw 80kva 50HZ
Self Exciting Synchronous Small Diesel Generators 80kw 80kva 50HZ
Product Details:
Place of Origin: Wuxi,China
Brand Name: Werna
Certification: CE,ISO9001,SASO
Model Number: WR274D
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Plywood
Delivery Time: Within 10 days
Payment Terms: T/T
Supply Ability: 1000units/month
Contact Now
Detailed Product Description
Packaging Details: Packed In Standard Seaworthy Packing (wooden Cases / Plywood Etc) Material: Cold Roll Stator & 100 % Copper
OEM Service: Acceptable Color: Optional
Insulation: H Protection: IP 22
Highlight:

single phase diesel generator

,

ac brushless generator

,

80kw self exciting diesel generators

Self Exciting Synchronous Diesel Generator 80kw 80kva 50HZ

Quick Detail:

Name

Alternator

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator


Power

         80kw

Certificate

CE,ISO9001,SASO


Specifications:

Model

WR274D

manufacturer

 Wuxi City ,Jiangsu Prov ,China making alternators

Output Type

AC Single Phase diesel generator

Terminal

12 / 6 Wire

Rated Voltage

110-240V

Frequency

50HZ

Speed

1500RPM

Mounting dimensions

Stamford Type

Winding Pitch

2 / 3 pitch

Excitation

Brushless, self-excited, synchronous

Insulation Class

H


Description:
We are Professional Manufacture for Brushless Alternator since the year of 2000, Which type are Copy of Stamford.There are 5kVA up to 1386kVA at 1500/1800rpm, 3000/3600rpm, with 50/60Hz, 110V-690V for you selected.Our company located in Wuxi city, Which is near Shanghai.We have a first-class technical personnel and a set of strict quality management system.We use the best materials and carry out the strict procedure to ensure our high quality. For example ,we have two vacuum leaching insulated paint ,which other companies can't do. Besides our Quality Engineer are old engineer who have rich experiences. And our price is reasonable for share of market is first in our company.

  1. The winding varnished wire

The varnished wire our factory use is the H level of 200℃.And the manufacture is the famous public factory whose quality reputation is stable and reliable.

  1. Silicon Steel Sheet

The silicon steel sheet we use is the products of Shanghai Baoshan Steel Co.,Ltd,which is the biggest and most famous manufacture of steel.And its advantage is its magnetic flux is large and its iron loss is small.

  1. Insulating paper

The insulating paper we use are supplied by a factory in Suzhou which is invested by a foreign company.The company has strict standard of quality management.They use the material of Dupont and imported glue water.Through the survey and detection,the quality is absolutely the best.

  1. The main frame

The main frame of the alternator and lead box are made of steel,the end cover is made of high strength cast iron.

  1. Craft

The craft of our company use the standard of Stamford.All the workers should be trained for a long time.And we carry out the management of 6s.

  1. Component

All the components of our factory,the stator,rotor and excitation will be dippinglacquer twice.This is a process that other factories never used.Because it would take much more electric charge,and make the insulated paint consume and loss twice,so it will increase the cost.What's more,all the components should be handled through the process of dampproof,salt and fog proof, anti-corrosion.

competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

Self Exciting Synchronous Small Diesel Generators 80kw 80kva 50HZ 0
