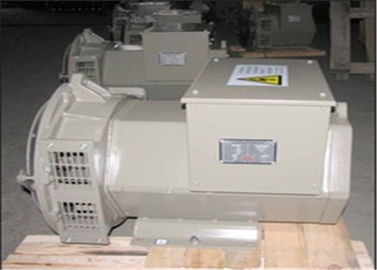

10.8kw 13.5kva Diesel Brushless Exciter Synchronous Generator 3 Phase IP23

10.8kw 13.5kva Diesel Brushless Exciter Synchronous Generator 3 Phase IP23

    • 10.8kw 13.5kva Diesel Brushless Exciter Synchronous Generator 3 Phase IP23
  • 10.8kw 13.5kva Diesel Brushless Exciter Synchronous Generator 3 Phase IP23

    Product Details:

    Place of Origin: Wuxi,China
    Brand Name: Werna
    Certification: CE,ISO9001,SASO
    Model Number: WR164C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: negotiation
    Packaging Details: Plywood
    Delivery Time: Within 10 days
    Payment Terms: T/T
    Supply Ability: 1000units/month
    Contact Now
    Detailed Product Description
    Manufacturer: Wuxi City ,Jiangsu Prov ,China Making Alternators Terminal: 12 / 6 Wire
    Packaging Details: Packed In Standard Seaworthy Packing (wooden Cases / Plywood Etc) Excitation: Brushless, Self-excited, Synchro
    Insulation Class: H Warranty: 2 Years
    High Light:

    ac synchronous generator

    ,

    brushless alternator generator

     10.8kw 13.5kva Diesel Brushless Exciter Synchronous Generator 3 Phase IP23


    Quick detail:

    Name

    Alternator

    Brand Name

    WERNA

    Color

    According to the international standard color card

    Feature

    AC brushless synchronous excitation alternator

    Power

    10.8kw

    Certificate

    CE,ISO9001,SASO




    Specication:

    manufacture

    Wuxi City ,Jiangsu Prov ,China making alternators

    Output type

    AC Three Phase Brushless generator

    Terminal

    12 / 6 Wire

    Rated Voltage

    110V~690V

    Frequency

    50Hz/60Hz

    Speed

    1500RPM/1800RPM

    Mounting Dimension

    Copy Stamford Type

    Winding  pitch

    2/3 pitch

    Excitation

    Brushless, self-excited, synchro

    Insulation Class

    H



    Description

    Technical Data



     Alternator Model copy stamford series
     Phase Three phase
     Frequency  50Hz/60Hz
     Speed  1500rpm/1800rpm
     Output Range  8.1-2200KVA
     Characters  single bearing,4-pole, brushless, H class insulation, c
     Waveform Distortion  no load <1.5% and non-distorting balanced linear load <5%
     THF/TIF  THF<2%, TIF<50



    Technical data

    Werna Type 3Phase 50Hz 1500rpm Shaft length Copper total weight Core length
    380V~415V
    KVA KW mm kgs mm
    WR164A 8.1 6.5 373.16 9.98 65
    WR164B 11 8.8 373.16 11.18 80
    WR164C 13.5 10.8 400.16 11.6 100
    WR164D 1 12.8 400.16 11.88 115
    WR184E 22.6 18 440.16 14.72 150
    WR184F 27.5 22 530.16 16.2 190
    WR184G 31.3 25 530.16 17.8 230
    WR184H 37.5 30 673.3 19.21 255
    WR184J 40 32 673.3 20.48 285























    Werna Type 3Phase 60Hz 1800rpm Shaft length Copper total weight Core length
    208V~480V
    KVA KW mm kgs mm
    WR164A 10.2 8.2 373.16 9.98 65
    WR164B 13.8 11 373.16 11.18 80
    WR164C 16.9 13.5 400.16 11.6 100
    WR164D 20.2 16 400.16 11.88 115
    WR184E 28.8 23 440.16 14.72 150
    WR184F 34.4 27.5 530.16 16.2 190
    WR184G 37.5 30 530.16 17.8 230
    WR184H 46.9 37.5 673.3 19.21 255
    WR184J 50 40 673.3 20.48 285



















































    Features:

    1)Any permanent magnetic generators, providing invariable excitation on all occasions.
    2)Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline  current.
    3)Balanced rotor with single or two sealed ball bearings
    4)Convenient installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
    5)Wide range of Flange adaptor and single bearing coupling disc

    Meet leading standards


    MECHANIC FEATURES



    Frame

    All industrial standard is IP22,also IP23 is an option.

    Axis and Key

    All of alternator rotors should pass balance test, whose vibrations are lower than the minimum of BS6861 P.1,G 2.5 two bearing alternator has a half-key testing balance

    Terminal and terminal box

    The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non drive end . The box is equipped with removable panels.

    Voltage regulation

    Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR



    ELECTRIC FEATURES

    INSULATION

    Insulation Class H

    All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

    Winding and electric features:

    2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline

    A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.

    Phone interference

    THF(defined by 40thpart of BS4999) <2%.TIF(defined by ASAC50.12)<50

    Radio interference

    Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.



    OPTION



    1. Adapters and drive disks

    2. Remote voltage adjust

    3. IP23 enclosure

    4. Space heaters

    6. Thermistors



    Quality Assurance



    Factory Inspection, the test items before delivery are mainly as follows:



    1. Each genset shall be put into commission more than 4 hours totally.



    They are tested on idle load, fully load and 10% overload



    2. The noise level is tested



    3. All of the meters on the control panel shall be tested



    4. The appearance of the genset and all of the label and nameplate shall be checked



    Warranty policy



    Guarantee for one year or 1200 hours whichever reach first from ex-factory date. During the guarantee period, WERNA will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, WERNA provides cost spare parts maintenance of alternator.


    Manufacturing Standards



    GB755, Third part of BS 5000,VDE 0530, NEMA MG1-22,IEC34,CSA C22.2-100 and ASB59



    FAQ:

      1. Q:When was your company established?

           A:in 2005



       2. What is your main products?

           A: Alternator, diesel generator, Motor.



       3. What certificate you get?

           A: We pass ISO9001-2008 and approved by CE,SASO.



       4. Q: What is your MOQ of this item?

           A: 1-10PCS



      5. Q: What is the lead time?

           A: 25-30 days after receiving your L/C or TT deposit.



      6. Q: Is it all right to make customer's own brand name?

           A: We can be your OEM manufacture with your authorization of brand.



      7. Q: Where is your Loading Port?

           A: Shanghai, China Port.



       8. Q: What are your payment terms?

           A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.



       9. Q: What is your company's available production capacity?

           A: 3000-5000 pieces against your orders.



    Why to choose Werna Alternator/generator?
    1. 100% copper winding wire
    2. In stock and fast delivery
    3. Two year warranty
    4. Best quality and competitive price
    5. Two-time vacuum impregnation dipping
    6. powerful quality control team
    6. CE,ISO9001
    7. Good after-sale service
