Electric Alternators
>

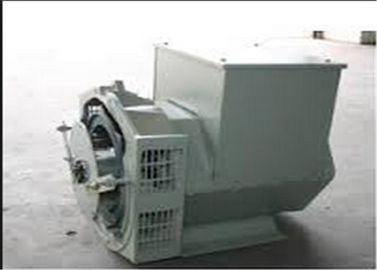

100KW / 125KVA High Output Brushless AC Generator CE ISO9001 SASO

100KW / 125KVA High Output Brushless AC Generator CE ISO9001 SASO

Brand Name: Werna
Model Number: WR274DL
MOQ: 5pcs
Price: negotiation
Packaging Details: Plywood
Payment Terms: T/T
Detail Information
Place of Origin:
Wuxi,China
Certification:
CE,ISO9001,SASO
Terminal:
12 / 6 Wire
Frequency:
50HZ
Mounting Dimensions:
Stamford Type
Control:
Good AVR
Material:
Cold Roll Stator & 100 % Copper
Rated Current: As Per Voltage:
As Per Voltage
Supply Ability:
1000units/month
Highlight:

brushless ac generator

,

brushless synchronous generator

Product Description

100KW / 125KVA High Output Electric Alternator For Honda Diesel Generator Set
Quick detail:

Name

ALTERNATOR

Brand Name

WERNA

Color

According to the international standard color card

Feature

AC brushless synchronous excitation alternator

Power

100KW

Certificate

CE,ISO9001,SASO


Specication:

manufacture

Wuxi City ,Jiangsu Prov ,China making alternators

Output type

AC Three Phase Brushless generator

Terminal

12 / 6 Wire

Rated Voltage

110V~690V

Frequency

50Hz

Speed

1500RPM

Mounting Dimension

Stamford Type

Winding  pitch

2/3 pitch

Excitation

Brushless, self-excited, synchro

Insulation Class

H


Description:
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR.   MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
7) Transient voltage dip for rated step load at 0.8 power factor is less than 18%.
8) Overload standard according to NEMA.
9) All generator statore are wound to 2/3 pitch.

 Frequency And Voltage
50Hz or 60Hz as per customer's request. Voltage from 380 ~ 690V, 190V~345V, 220~400V, serial star, parralle star and serial delta connection are available, All three-phase generators are 12-lead reconnectable, providing voltage and phase flexibility.

Insulation and Protection
Insulation: H, Protection: IP23

Voltage Regulators
The model we use including: MX321, MX341, AS440, SX440, SX460, etc.

Winding
All generator stators are wound to 2/3 pitch

Why to choose Werna Alternator/generator?
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service

 Process Equipments
