| Place of Origin: | WUXI CITY,CHINA |
| Brand Name: | WERNA |
| Certification: | CE ,ISO .,SASO |
| Model Number: | WR274K |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | USD |
| Packaging Details: | strong plywood cases |
| Delivery Time: | 15-20days |
| Insulation Class: | Class H | Protection Class: | IP22 |
|---|---|---|---|
| Warrantry: | 2 Years | ||
| High Light: | Stamford Type Brushless AC Generator,200KW Brushless AC Generator,1500RPM Brushless AC Generator 50Hz |
||

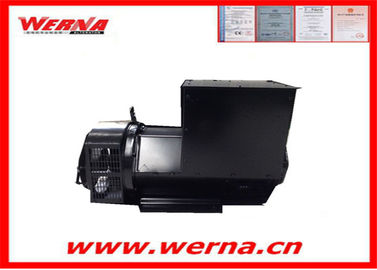

200KW Brushless AC Generator AVR 50Hz / 1500RPM , Stamford Type
What is a brushless AC generator?
A generator regulates it's output voltage by varying the strength of the magnetic field of the rotor (rotating part) which is made by an electromagnet (coil). Typically this is powered by brushes and slip rings however in a brushless AC generator the slip rings are replaced with a stator winding, another rotor winding and a bridge rectifier on the rotor. The operation of the two windings are similar to that of a transformer. The stator winding is powered with AC (varying strength to regulate generator output) which induces a current on the rotor winding. The output of the rotor winding is rectified and used to power the other stator winding that generates the steady magnetic field for the generator.
Quick Detail:
|
Name |
Alternator |
Brand Name |
WERNA |
|
Color |
According to the international standard color card |
Feature |
AC brushless synchronous excitation alternator |
|
Power |
200kw/250KVA |
Certificate |
CE,ISO9001,SASO |
Specifications:
|
Model |
WR274K |
|
manufacturer |
Wuxi City ,Jiangsu Prov ,China |
|
Output Type |
AC Single Phase |
|
Terminal |
12 / 6 Wire |
|
Rated Voltage |
220-480V |
|
Frequency |
50HZ |
|
Speed |
1500RPM |
|
Mounting dimensions |
Stamford Type |
|
Winding Pitch |
2 / 3 pitch |
|
Excitation |
Brushless, self-excited, synchronous |
|
Insulation Class |
H class |
Description:
with Long experience in manufacturing alternator / ac generator,ranging6.5~120kw
for prime or standby use, more than 50 different models, with 50Hz or 60Hz frequency, Single bearing or
Double bearing, brushless, Self-excited. Abounds with almost every model in stock.
1) Protection class IP23, insulation class H.
2) The standard winding protection can accept up to 95% relative humidity and the alternator is suitable
for indoors marine applications.
3) The brushless alternator is equipped with reliable AVR. MX321, MX341, AS440, SX440, SX460, etc
4) Adapted to excitation systems, powered by transistors and fulfilling perfect regulation.
5) The power factor ranges from 0.8 to 1.
6) Telephone influence factor is less than 50, according to NTMA.
Competitive Advantage:
1. 100% copper winding wire
2. In stock and fast delivery
3. Two year warranty
4. Best quality and competitive price
5. Two-time vacuum impregnation dipping
6. powerful quality control team
7. CE,ISO9001
8. Good after-sale service
Production line
